Default Re: Sound Deadening (CLD) Testing

KnuKoncepts Kolossus

ACTUAL MEASUREMENTS

Total Thickness - 100mil

Constraining Layer Thickness - 4mil

0.96 lbs per square foot

Notes - Constraining layer doesn't measure to spec. Everything else is relatively close. Easy to remove, and clean to remove.

Bare Metal Frequency Response


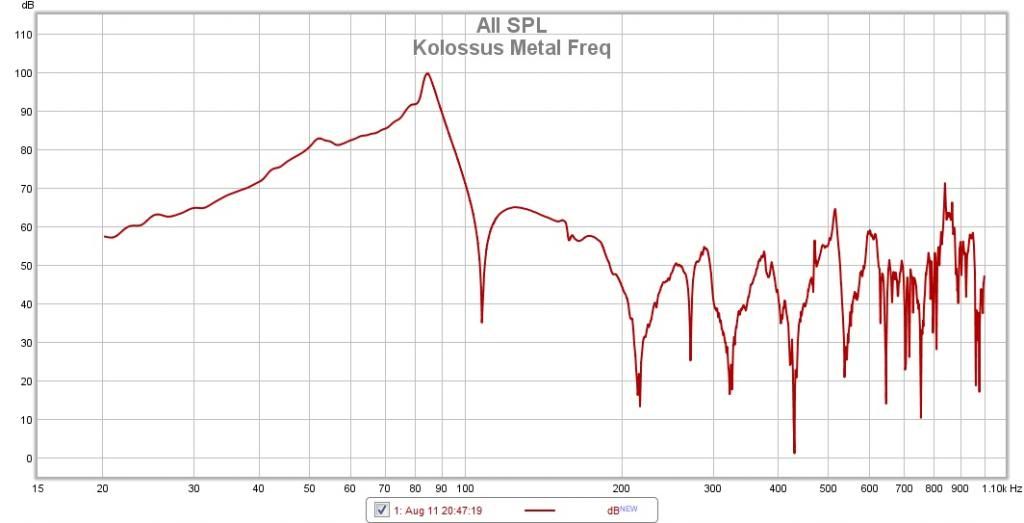

Damped Metal Frequency Response


Overlay of Bare Metal vs Damped Metal Frequency Response


Bare Metal Waterfall


Damped Metal Waterfall

98 Dodge Neon Meca Extreme Class Build
https://www.diymobileaudio.com/forum/...-timer-sq.html
TOOSTUBBORN2FAIL is offline   Quick reply to this message
