Product Brand & Model: krypt kma500.1



Condition of all items:new



Total Price:$150 :



Shipping Terms: :

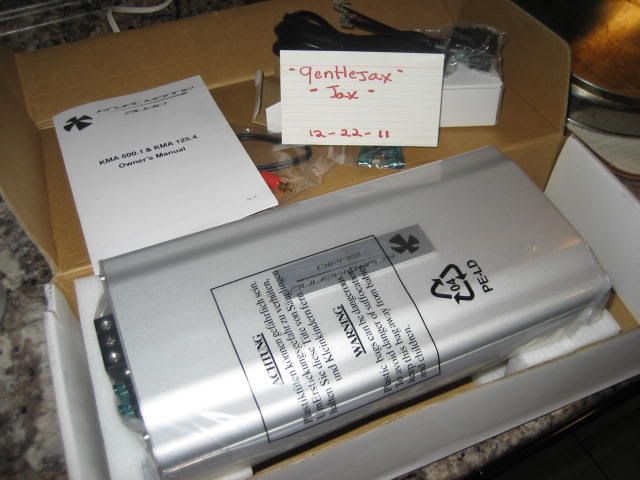

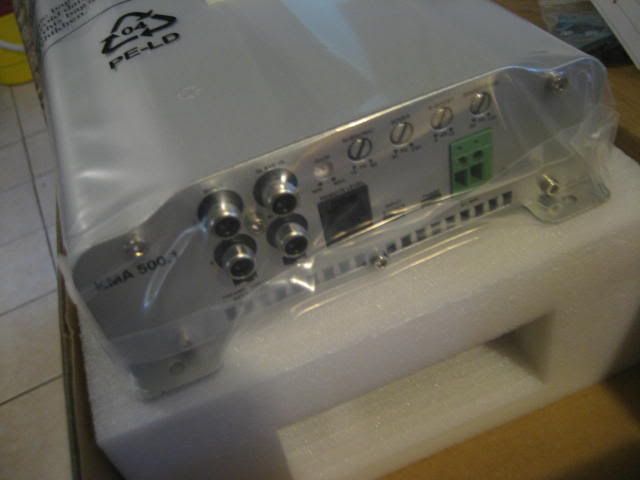

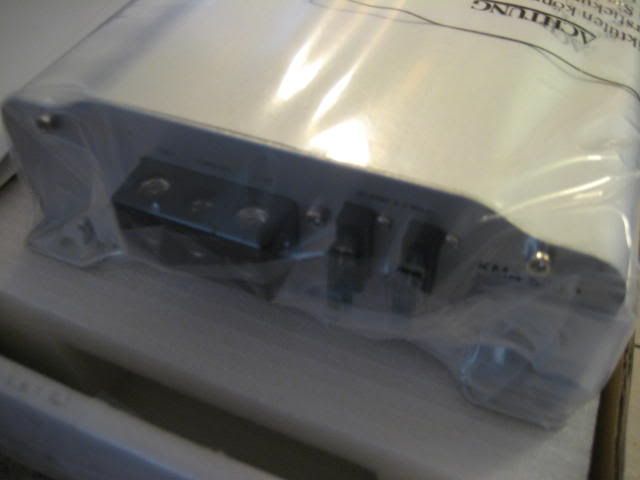

Pictures:







- Unless you are a Upgraded member, or your last 10 iTrader feedbacks are positive, you must post a picture of the exact item you are selling.


Additional info:

lets try this again.

Price is adjusted because people tell me I sell myself short . it is negotiable.

specs:

Robert Zeff is the engineer for ARC Audio. He is also the on the American team of engineers for UBUY which is a amp builder. He designs an amp and then its built by Ubuy overseas. The amp designs are also used for other manufacturers like Clarion, VIBE, ELF and KRYPT among others. same amps with slight variations. mainly cosmetic. many amps are made in same build house. nothing new about this practice.

what we have here is a variation of the ARC Audio mini ks500.1 . again same amp just different case and the crossover was moved to the side.

specs for ARC AUDIO KS500.1
ARC Audio KS 500.1 Mini
The KS 500.1 mini uses a Patent Pending Auto Sense Turn-on circuit that offers a significant improvement in reliability. No more will the amp unexpectedly turn off in the middle on a song. Instead of relaying on the music to supply enough signal to turn the amplifier on ARC Audio's new design detects the BTL IC (chip amp) used in the vast majority of stock head units and amplifiers. To further simplify OEM integration the KS 500.1 uses a fully balanced input stage that is switchblade between speaker and RCA input. Simply plugging your stock speaker wires into the RCAs will supply perfectly clean signal and turn the amp on. What could be easier then that? Well how about reversing the remote turn-on connection to turn on the rest of you amplifiers? Once the KS500.1 is set to Auto Sense the remote turn-on now becomes an output to turn on all your other equipment.

Compact Single Channel Amplifier Design
Optically Isolated Mosfet Power Supply
Can Drive Highly Reactive Loads
Protection Against: Reverse Voltage, Over Voltage, Speaker Short, and thermal Overload
Built in Compact Cooling Fan
Compact Chassis Design for Small Vehicle applications
Designed by Robert Zeff
Class A/B Non Digital Switching design
Stable to 2 ohms


Specifications:
Power @ 4 ohms: 310 X 1 watts @ 14.4 Volts
Power @ 2 ohms: 500 x 1 watts @ 14.4 Volts
Signal to Noise: 82dB
THD: .05%
Frequency Range: 30Hz– 200Hz
Crossover: 30Hz – 200Hz
Bass Boost: 0 - 15dB @ 30Hz - 125Hz
Fuse: 30A x 2
Size: 11.6' (L) x 5.15” (W) x 1.7”(H)








specs for KRYPT KMA500.1(acr audio internals)


Specifications:



KMA500.1

Class H Subwoofer Amplifier

Output Power (RMS) @ 1% 100Hz 14.4V CEA 2009



Mono @ 4 Ohms 1x312 Watts

Mono @ 2 Ohms 1x509 Watts

Signal to Noise 82db

THD .05%

Frequency Range 20Hz - 200Hz

Crossover 30Hz -2000Hz

Bass Boost 15db @ 30Hz- 125Hz

Fuse 30A x 2

Input Sensitivity .3V- 3.5V

Input Impedance 10K ohms














** DO NOT DELETE ANYTHING BELOW THIS LINE OR THREAD WILL BE DELETED **
------------------------------------------------------------------------------------------

Please be advised, all buyers and sellers are responsible for performing their own due diligence when considering any financial engagement. We recomend that you:

1) Check the iTrader feedback of the person you are dealing with on this site, as well as other car audio forums.
2) Ask for a name address and phone number. Call them and verify their info.
3) Valid e-mail address. Correspond before committing.
4) consider using an escrow service to protect yourself.

DO NOT proceed with a deal until you are completely satisfied with the other party.

DIYMobileAudio & Collova Media Inc. is not responsible for the outcome of any transaction on this site and will not moderate on your behalf.


·
Registered
Joined
·
1,015 Posts
I got mine last night. Thanks Mike. This thing is build very nice. I wont get to try it out for a week or so, but I have no doubts it will do what I am hoping it will. Very nice amp and for the money is probably one of the best values.

Oh...and it comes with its own small screwdriver!!!! Lol.


·
Registered
Joined
·
5,224 Posts
Ive been using this amp for the past month.

It comes with a bass knob that actually works well. Unlike most remote knobs where its off, half way, or full volume,this one is gradual. Sounds great, way better than my pdxm6. no thermal issues on my dual 3 ohm evo. Recommended


·
Registered
Joined
·
4,102 Posts
Discussion Starter #8
throw an offer out there. worst I can do is not answer you


·
Registered
Joined
·
4,102 Posts
Discussion Starter #9
I hate Monday


·
Registered
Joined
·
4,102 Posts
Discussion Starter #10
bump


·
Registered
Joined
·
4,102 Posts
Discussion Starter #11
I still have this until buyer pays which I havnt heard from in hours. I closed the other thread cause it was a TRADE thread.

this is the original thread for sale.

still here.
