Nissan 350Z H.A.T., Pioneer, MBquart(OG), JL active build

21586 Views 61 Replies 32 Participants Last post by  AdamTaylor
I have a 2006 Magnetic Black 350Z 6sp.









Source: Pioneer Premier F90-BT

Processing: AudioControl DXS, AudioControl DQT

Power: Alpine PDX4.100 Alpine PDX2.150 JL Audio 500/1

Tweeter: Hybrid Audio Technologies Legatia L1-Pro's (Black) ch 1&2 on PDX4.100

Mid-Range: Hybrid Audio Technologies Legatia L4's ch 3&4 on PDX4.100

Mid-Bass: MB Quart QM200 8" (oldschool before they went to ****) ch 1&2 on PDX2.150

Subwoofer: JL Audio 10W7 v.3 on JL 500/1


Objective: achieve sound that is amazing to me, not some judge at an event. I want to enjoy this in MY daily driver.

See less See more
5
1 - 20 of 62 Posts

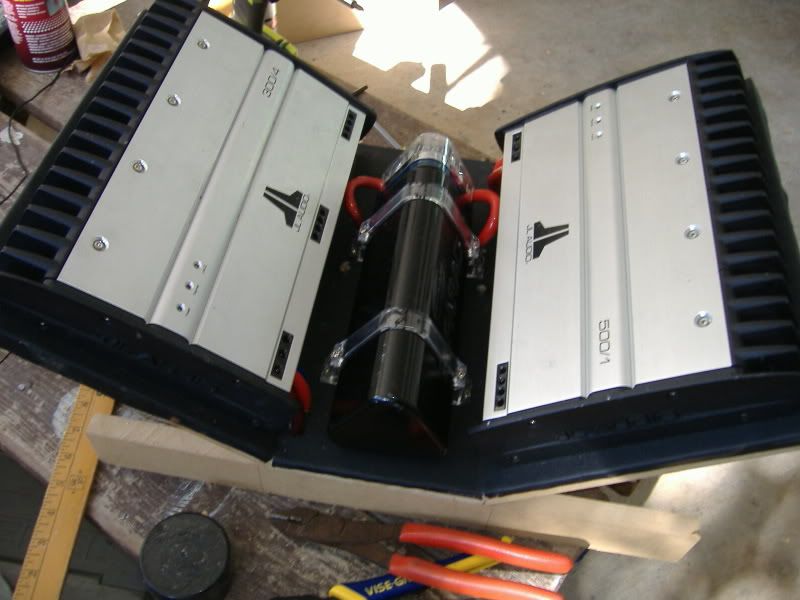

Love the hotness! Whats the capacitor for? :D
looking good...
Love the hotness! Whats the capacitor for? :D
just had it laying around... figured it cant hurt anything
just had it laying around... figured it cant hurt anything
That's cool.

Where is everything going?
Portion already done:


So i got bored and decided to build a new box for my 10" JL W7

Goal:

More air space while still retaining the under strut appearance... looking to get around 2 ft^3 before displacement since my last box only had 1.4 before displacement.




heres how shes coming

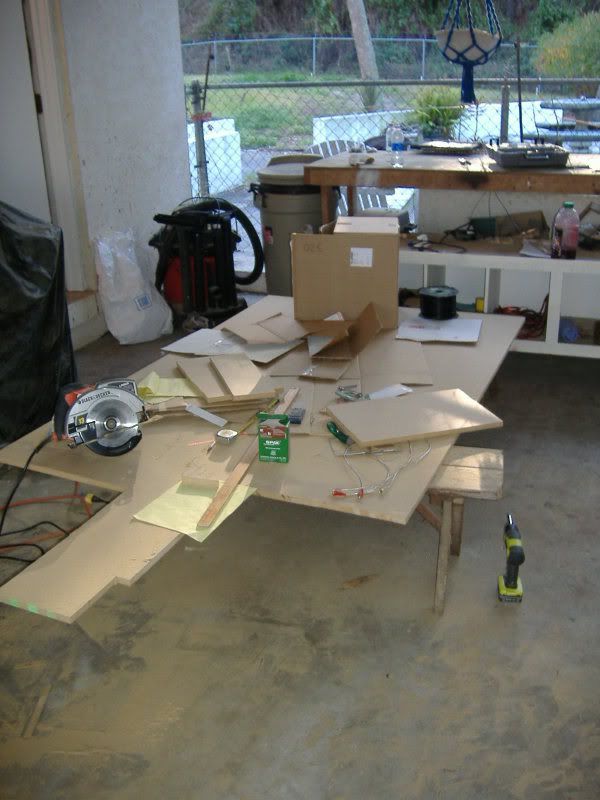

In the beginning


quick test


more


so far so good


me no like leaky boxs


thought i was kidding


FACE!


Damn im good.... 2.041 ft^3


speaker wire of choice
See less See more
8
Stripping her down to her birthday suit



NUDES!!!


Who need a terminal cup when you can run straight wire?



WTF?


make more sense now?


quick test... precision isnt necessary here



I drill holes for fun
See less See more
7
got my vinyl today.... so i put it on everything




check out my toe in the bottom right... Note to self: dont drop a sheet of mdf on your foot









ITS WORKING!!!!



amp rack is gone!
See less See more
5
i love the way a w7 looks, and you made it even better matching with the car great job
Man , hot car - WoW
Is that just a cosmetic facade for the sub?

You didn't show build pics or explain where it came from.
i love the way a w7 looks, and you made it even better matching with the car great job
i like the W7 but i want to try so many different subs.... too many to choose from



Man , hot car - WoW
thanks man

Is that just a cosmetic facade for the sub?

You didn't show build pics or explain where it came from.
yep, just cosmetic so there isnt a huge gap on either side of it, its just mdf wrapped in vinyl pressure fit in the opening
looks good... looking forward to the rest of the pics
DAMN! got allot done yesterday but i still cant find my camera

-ran all new speaker wire properly (damn you molex) for front stage 14awg for mids and highs 12awg for mid-bass

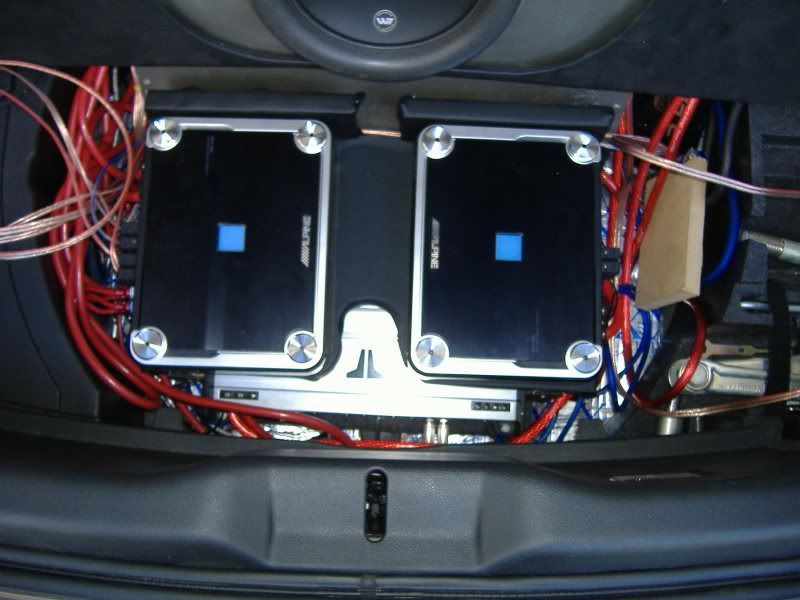

-new amp rack with jl 500/1 and both pdx amps

-wired up audiocontrol crossover and eq

-finished crossover and eq rack with raised "Z" logo covered in vinyl

-re wrapped the A-Pillars in vinyl

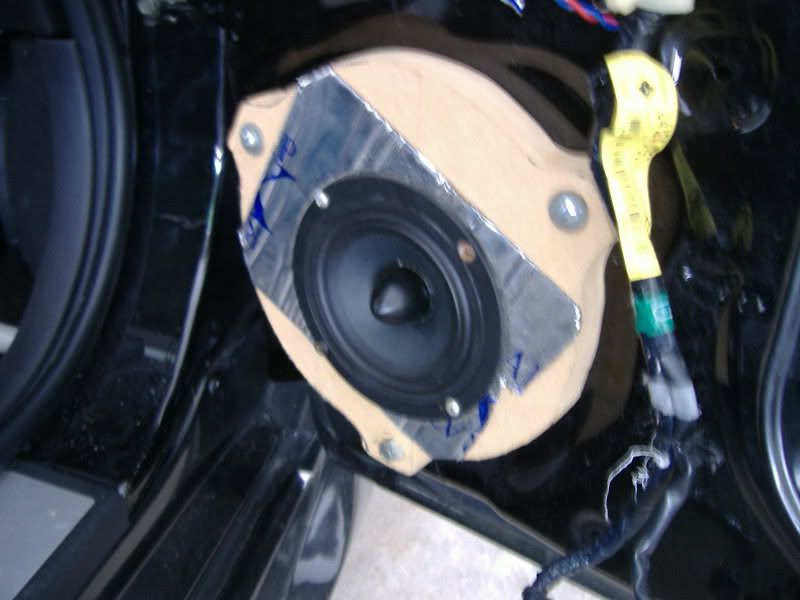

- Installed HAT L1Pros (awesome)

-And i fu#king ruined one of my midbass speakers :( now i have to get a new surround for it or just scrap it
See less See more
didnt have camera yesterday so no build pics









See less See more
10
