Discussion Starter #1
For test setup, procedures, and information on how the data was obtained see sticky here:
http://www.diymobileaudio.com/forum/product-reviews-erin-harrdison-bikinpunk/103414-driver-testing-methods-setup-frequency-response-harmonic-distortion-only.html
Do not ask setup questions in this thread. This thread is only for driver discussion.

To understand how to read the data, try here:
http://www.diymobileaudio.com/forum/product-reviews-erin-harrdison-bikinpunk/103817-how-read-frequency-response-harmonic-distortion-plots.html



Driver Tested:
Scanspeak 18w/4531g:
[no pictures taken]

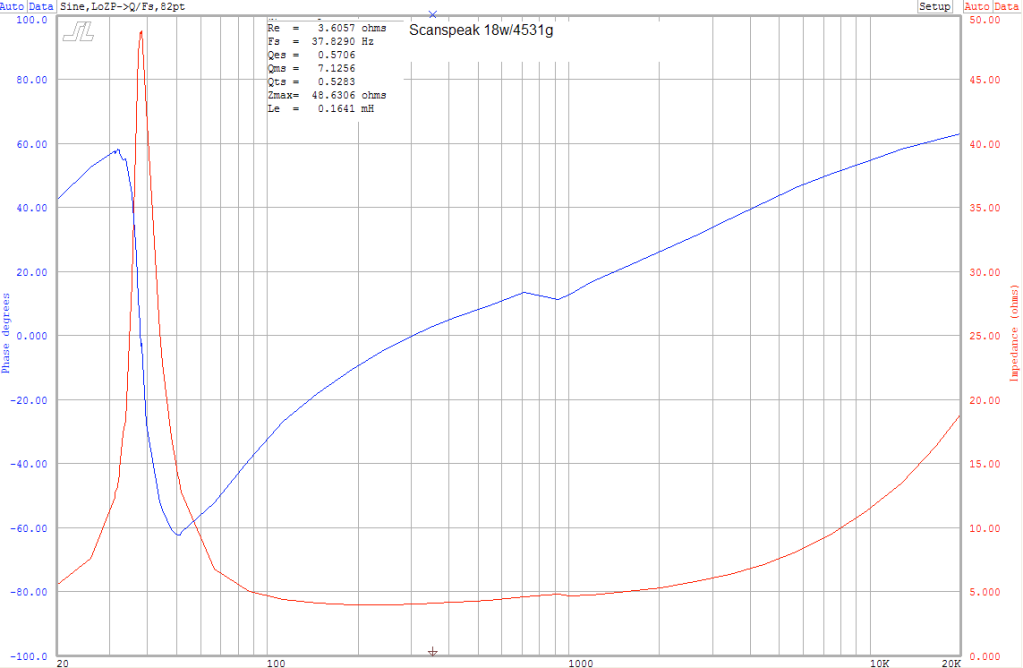

Impedance and T/S Parameters:

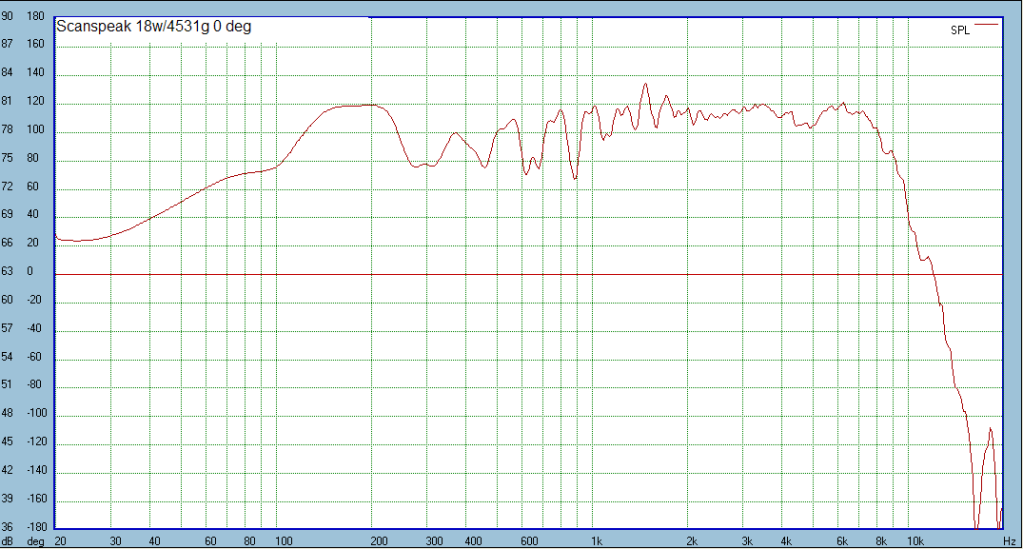

Frequency Response at 0 degrees, 3dB scale:

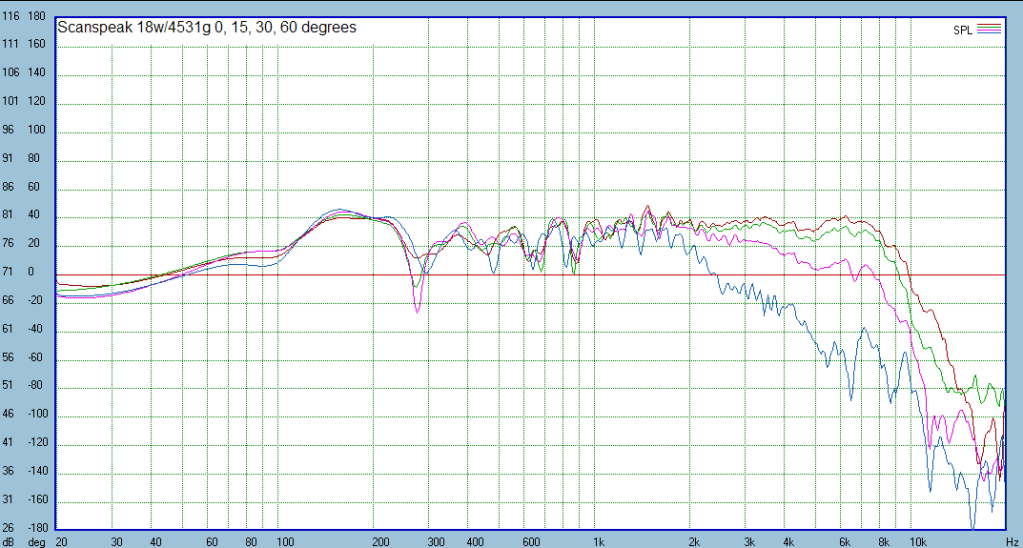

Frequency Response at 0, 15, 30, and 60 degrees, 5dB scale:

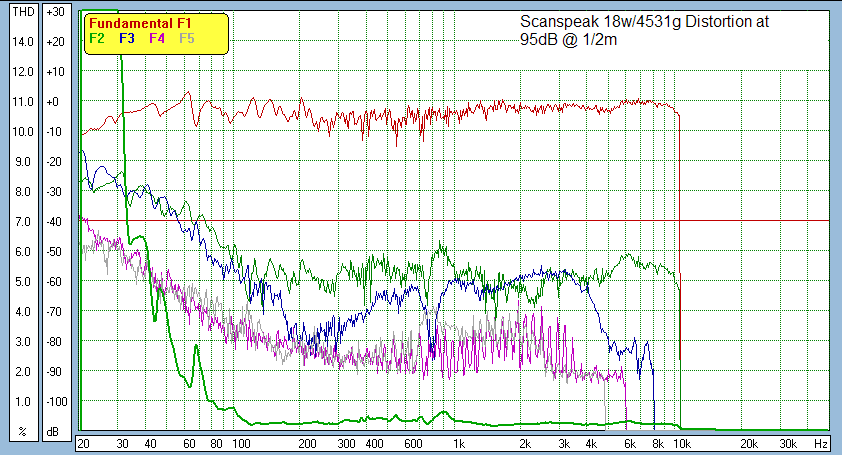

Harmonic Distortion at 95dB:


·
Registered
Joined
·
1,416 Posts
I'd be interested to see these Scan Revs compared to the Seas W18NX. I'd be happy to provide my pair for testing if you are interested. PM me.
