Driver Info:
ScanSpeak Illuminator 18WU/4741T 7" Woofer, 4 ohm: Madisound Speaker Store

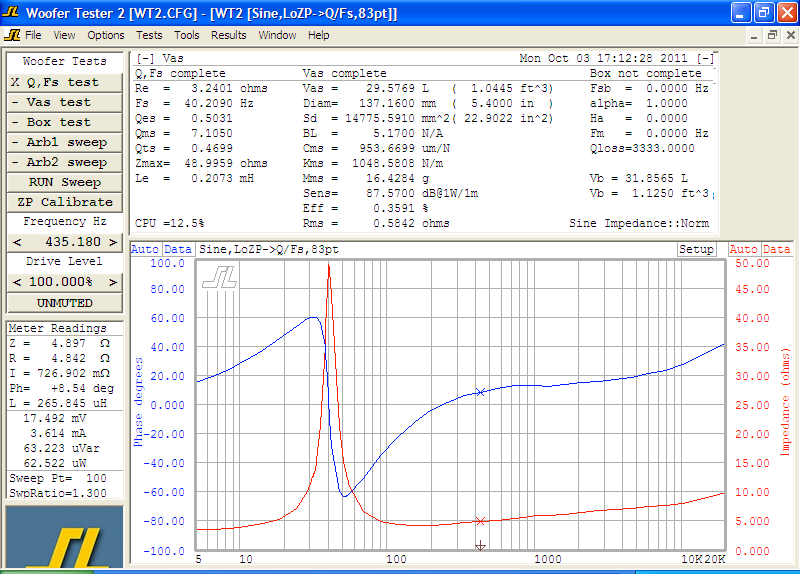

Impedance & T/S Specs:

• Re = 3.2401 ohms
• Fs = 40.2090 Hz
• Zmax = 48.9959 ohms
• Qes = 0.5031
• Qms = 7.1050
• Qts = 0.4699
• Le = 0.2073 mH (at 1 kHz)
• Diam = 137.1600 mm ( 5.4000 in )
• Sd =14775.5910 mm^2( 22.9022 in^2)
• Vas = 29.5769 L ( 1.0445 ft^3)
• BL = 5.1700 N/A
• Mms = 16.4284 g
• Cms = 953.6699 uM/N
• Kms = 1048.5808 N/M
• Rms = 0.5842 R mechanical
• Efficiency = 0.3591 %
• Sensitivity= 87.5700 dB @1W/1m
• Sensitivity= 91.4953 dB @2.83Vrms/1m
Klippel Calculated Displacement Limits:
• X Bl @ Bl min=82% 11.6 mm = Displacement limit due to force factor variation
• X C @ C min=75% 9.1 mm = Displacement limit due to compliance variation
• X L @ Z max=10 % >12.6 mm = Displacement limit due to inductance variation
• X d @ d2=10% 37.1 mm = Displacement limit due to IM distortion (Doppler)

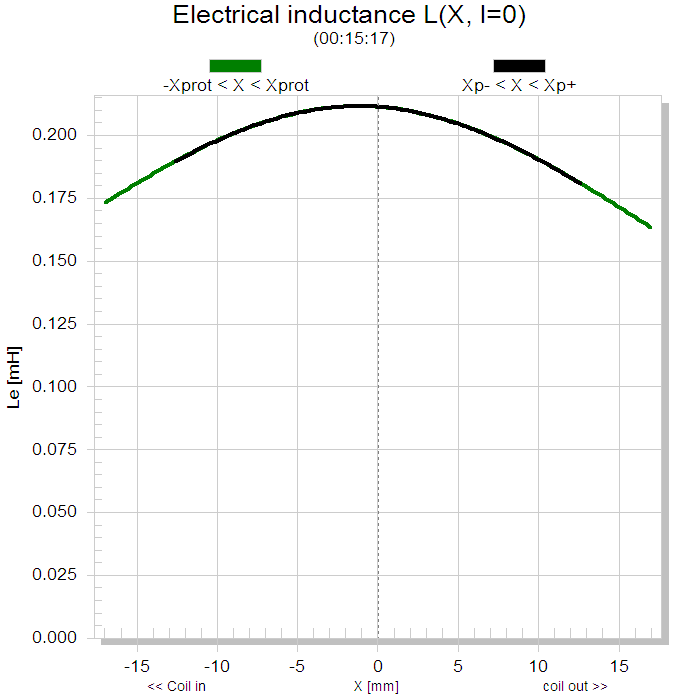

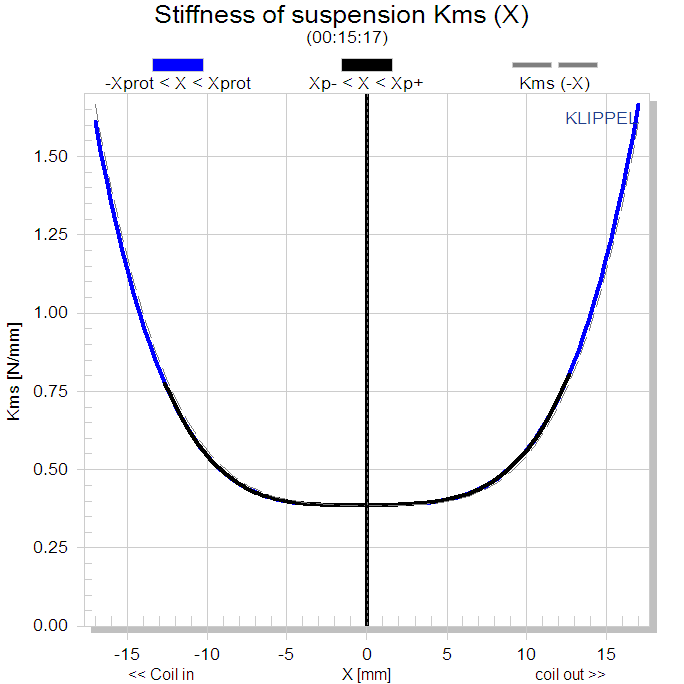

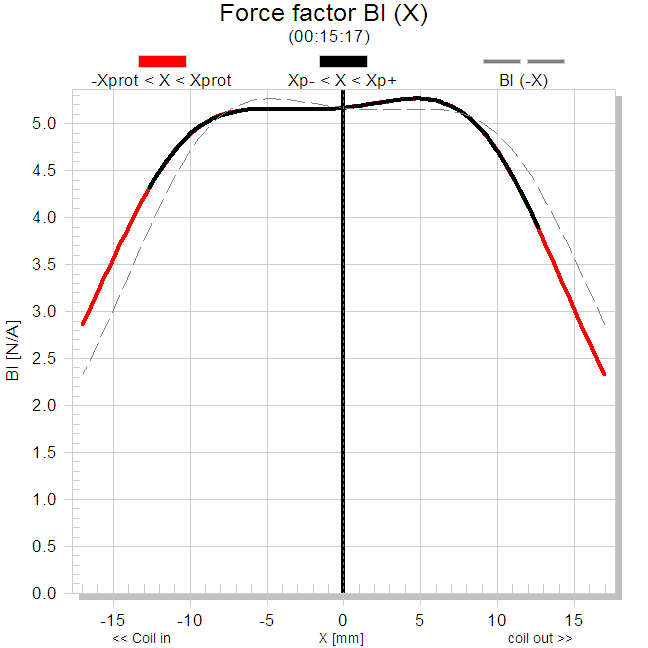

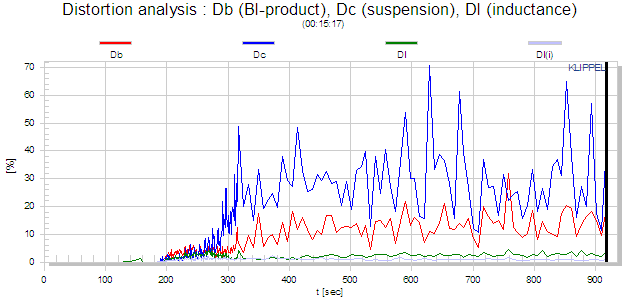

Sample Klippel Data:

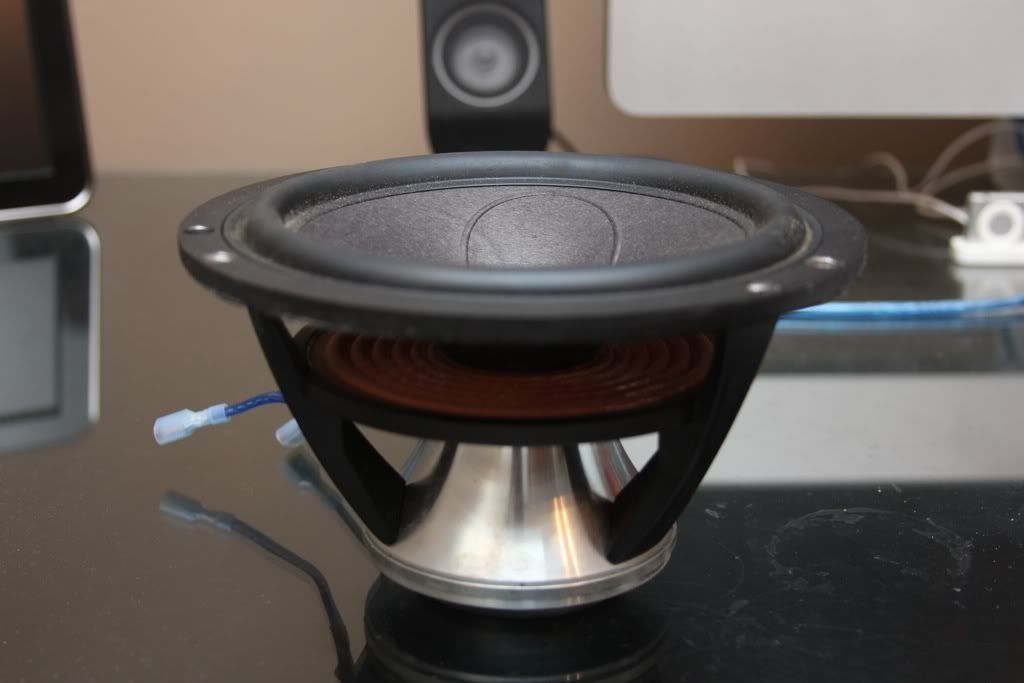

Driver Picture:

This driver is flat out unreal. The symmetry is almost perfect for a stroke of it's size, and the most limiting xmax is 9.2mm. Bl is 11.9mm.
The Cms curve is nearly perfectly symmetrical. Bl has a small shift

I had to push this driver hard to get Bl to resolve. Most drivers will have one parameter resolve earlier than the other, and you have to push the other parameter a bit harder in the 'protection' parameter to get it to resolve. The low end of the latter is typically in the 30-40% range. Frankly, I don't like pushing a driver below 30% anyway because it really starts to get nasty; as in, I'm waiting for the cone to jump off the surround and fly through my room. Although Cms resolved around 50%, I had to push this driver down to 25% Cms (which is entering territory I typically feel unsafe doing because you are seriously pressing the stroke) to get Bl to resolve and give you guys a useful number for it. What blew my mind is that while this driver was under test at this level, it handled it just fine. I've honestly not had a driver yet that could get either of its parameters down this low and not sound like it was going to come apart. There is zero motor noise and some very slight popping of the coil, which you can't hear unless you're standing right in front of the driver at full output. I recorded this driver while being tested and made sure to video the settings on screen. Note that you'll see the Cms protection parameter hovering at 25% and you hear NOTHING from the driver while doing this.

CLICK TO WATCH VIDEO!

Not only does it fare EXTREMELY well mechanically, but the sensitivity of this driver is excellent for a non-pro-audio driver: 87.5dB @ 1w/1m!!

So, yea... to say I'm impressed by this driver is a terrible understatement. I've yet to test a driver that does this well. But, it certainly is not cheap. IMO it's worth every single penny, but to some the value may not be there. I just don't see how it couldn't be.

- Erin
