Hey guys..

Well the weather finally warmed up a couple months ago and I was left with the dilema of trying to finish the Accord, or start and finish a system for my wife. Even though the Accord isn't finished cosmetically, the system itself has been running like a champ so onto the wife's car it is..... You all know the saying right "HAPPY WIFE = HAPPY LIFE

"

So the goals for the system were really pretty straight foward. This is by no means any sort of competition level system. It's just something to provide better performance than what came stock.

I also wanted to use up some of the gear I have had just laying around. As of right now they system is comprised of a Pioneer AVX-H2500BT head unit (the only "new" piece of gear used), one pair of a/d/s/ 345is component speakers running actively off of four channels of an a/d/s/ PH30.2, and finally a single a/d/s/ A12s.2 running bridged of of the final two channels of the PH30.2

We'll start with the boring stuff first I guess

I didn't take too many pics of all the wiring and what not but here are a few anyway:

Originally I was going to keep the factory HU in place so here's the remote-lead ralay that I had installed a while back.

See less See more

3

1 - 20 of 122 Posts

shawnk

Discussion Starter · #2 · Jul 24, 2013

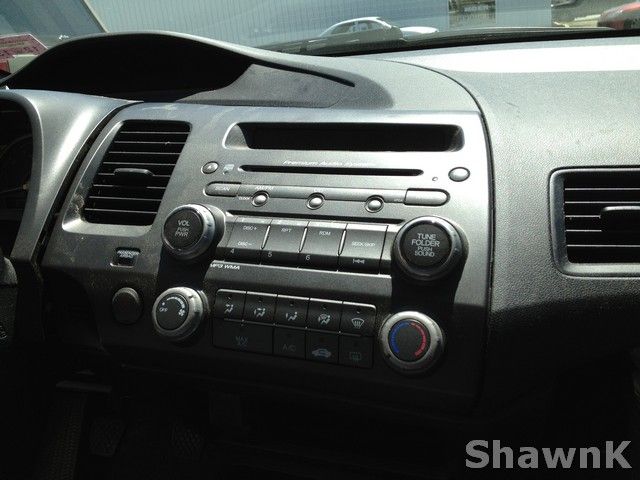

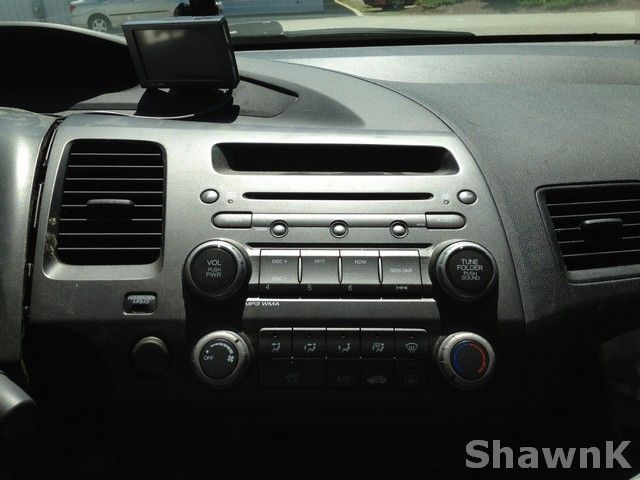

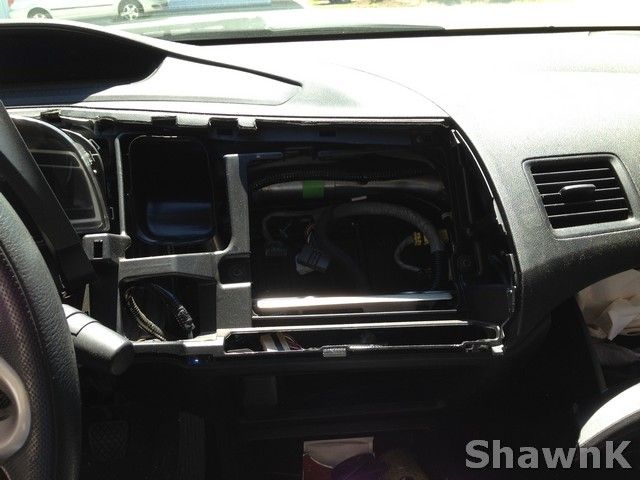

Here's the oem HU:

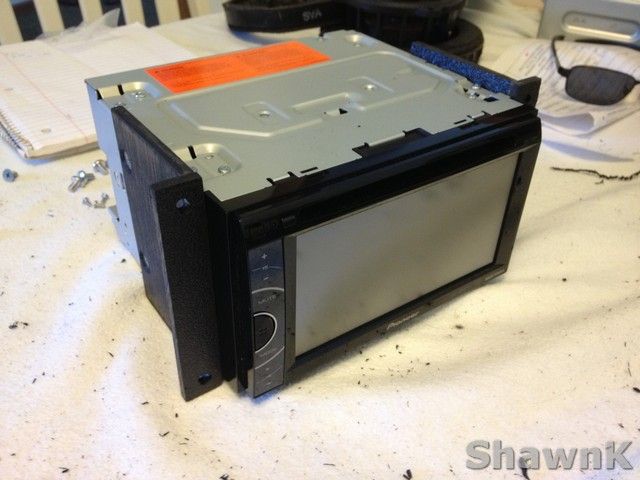

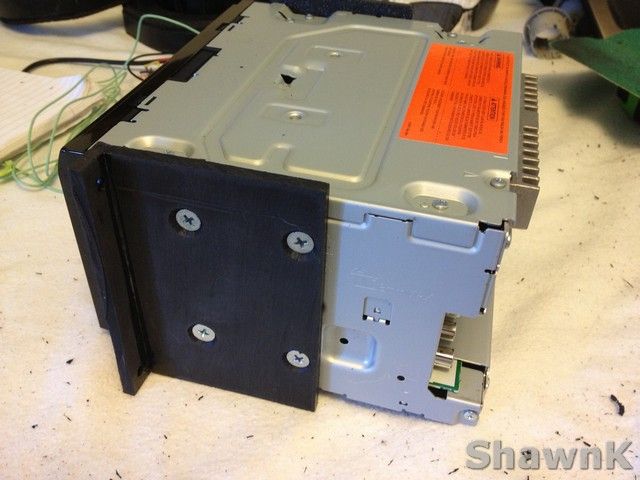

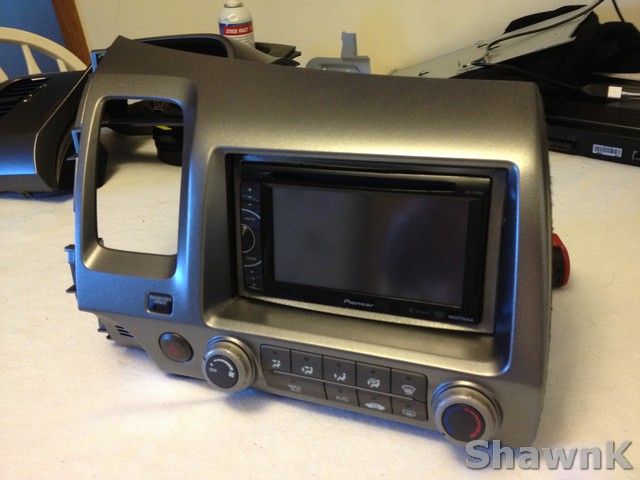

I wanted a "cleaner look in the dash than what Metra or others offer for dash kits so I decide to go with an oem bezel which is used for the Navi option from Honda. This meant that I had to make my own brackets for the Pioneer DD which I did using 3/16" abs.

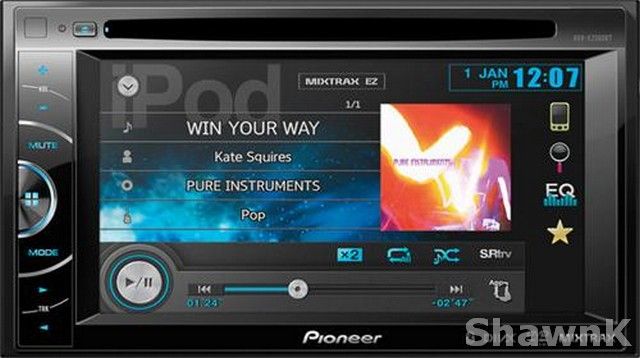

Here is the deck I'm referring to... this thing is fantastic for the $$ imo

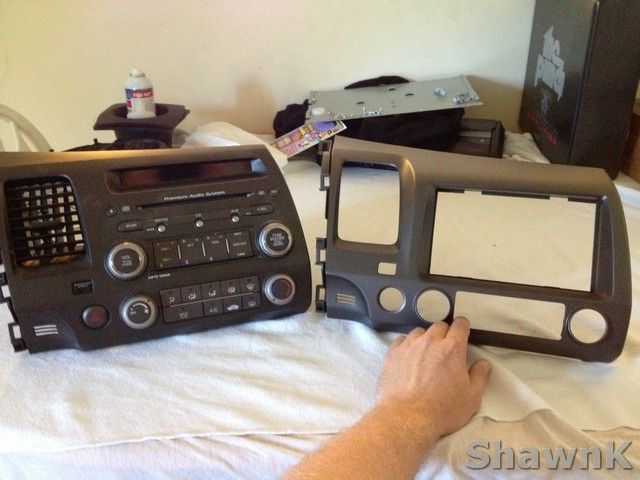

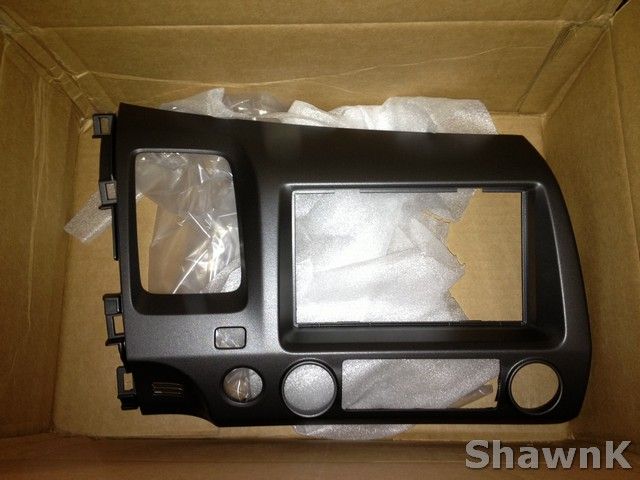

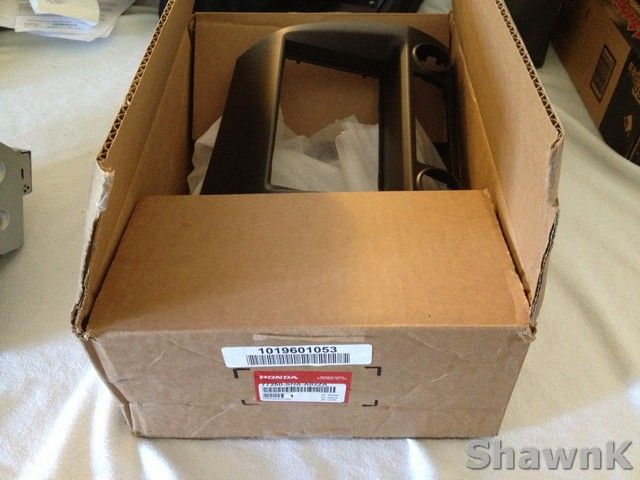

and the oem bezel:

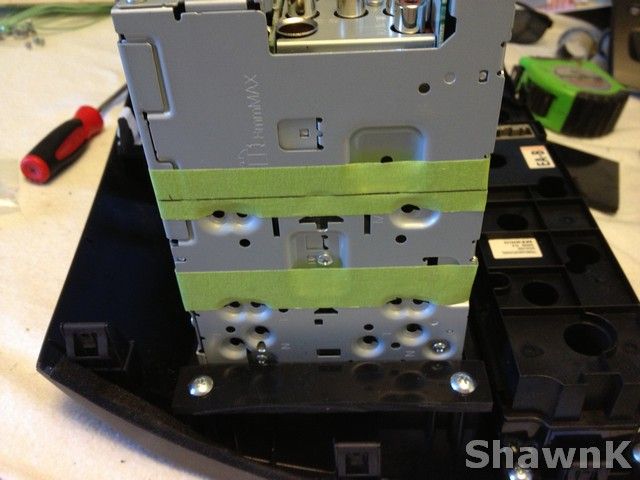

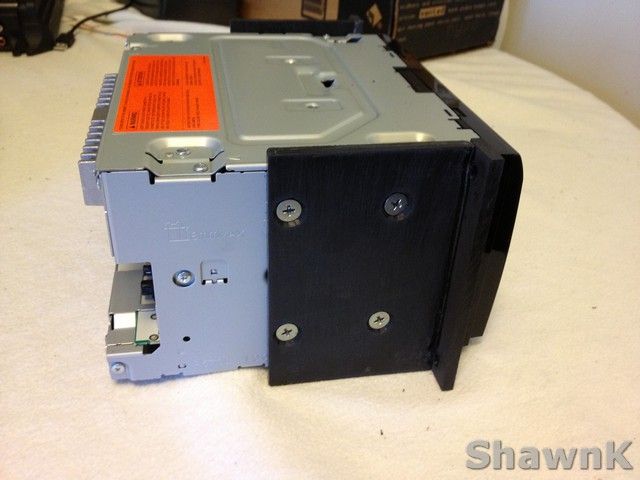

and here's the fabrication for the brackets:

See less See more

9

cobb2819

· #3 · Jul 24, 2013

Why not buy the dash kit for the OEM Bezel that you bought??

shawnk

Discussion Starter · #4 · Jul 24, 2013 (Edited)

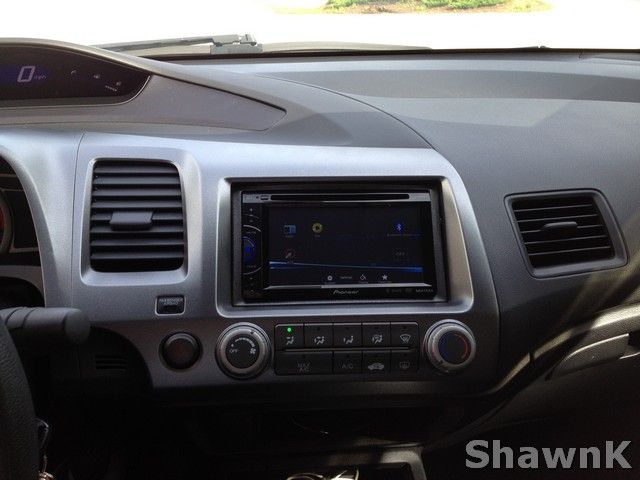

The oem opening is a little larger than an after market DD so I had to fill it in with a trim ring:

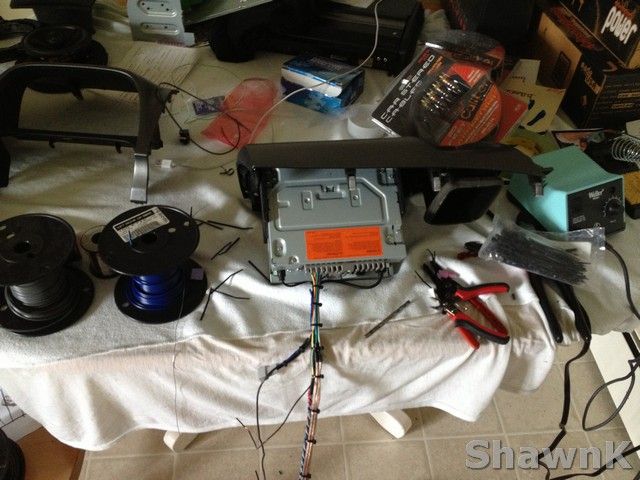

So has anyone else done this to their kitchen table when working on an install???

See less See more

10

shawnk

Discussion Starter · #5 · Jul 24, 2013

cobb2819 said:
Why not buy the dash kit for the OEM Bezel that you bought??

You ask "why not", but I ask "why" when I can make my own brackets and save $20

shawnk

Discussion Starter · #6 · Jul 24, 2013

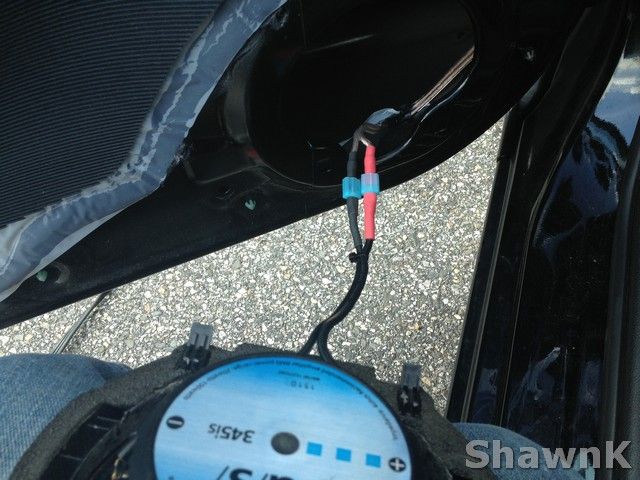

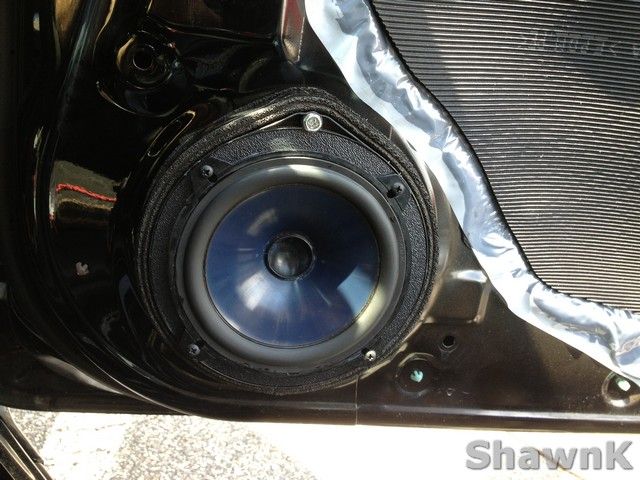

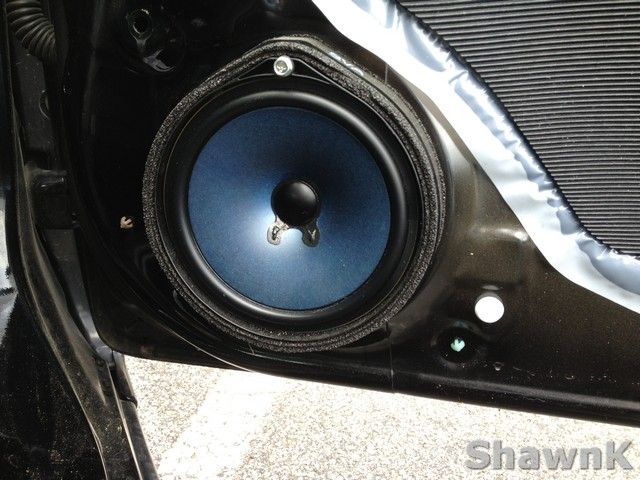

Here is the oem speaker which I gutted in order to utilize the mounting flange. I basically made a baffle using 1/4" abs which I ca glued to the abs oem speaker frame. It really works quite well and as an added bonus, it seals to the door panel perfectly.

See less See more

7

shawnk

Discussion Starter · #7 · Jul 24, 2013

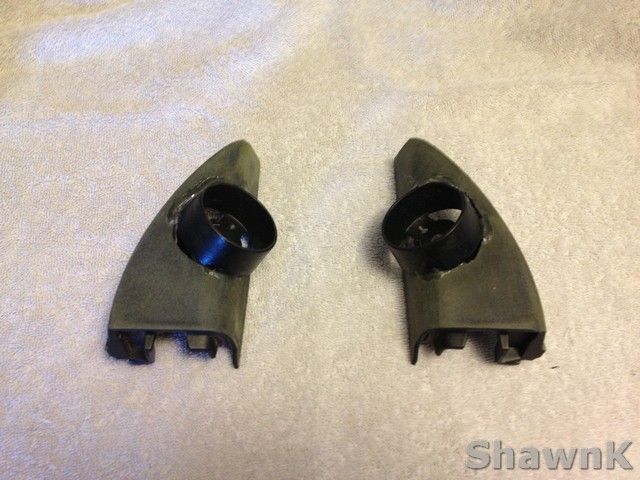

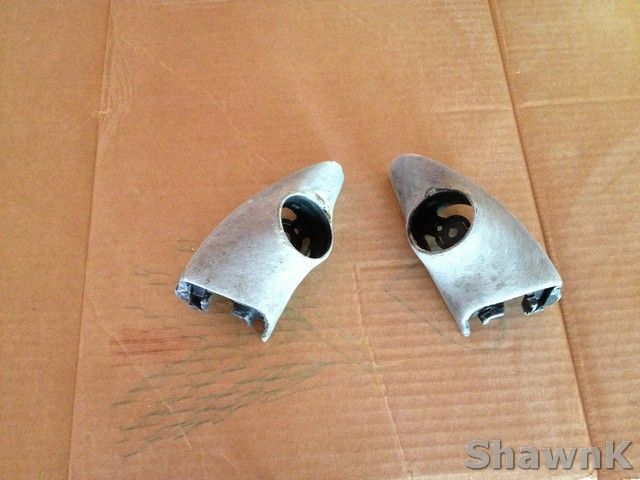

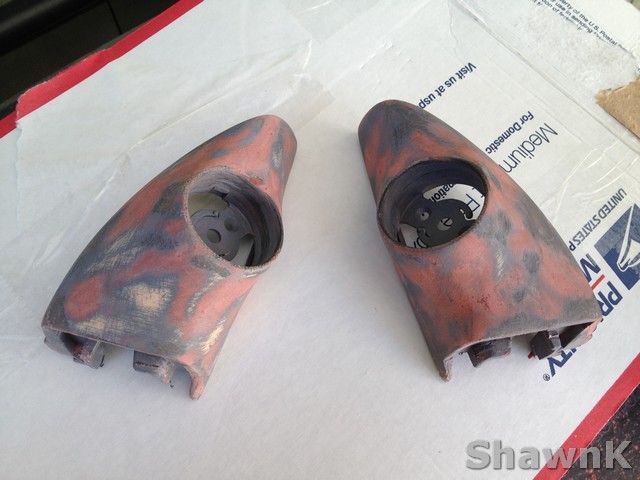

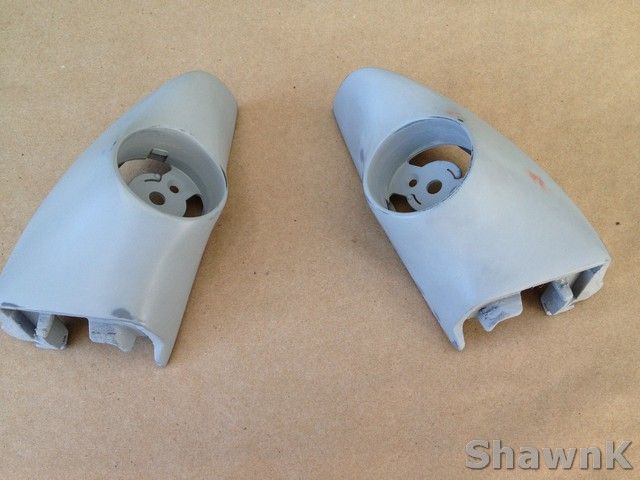

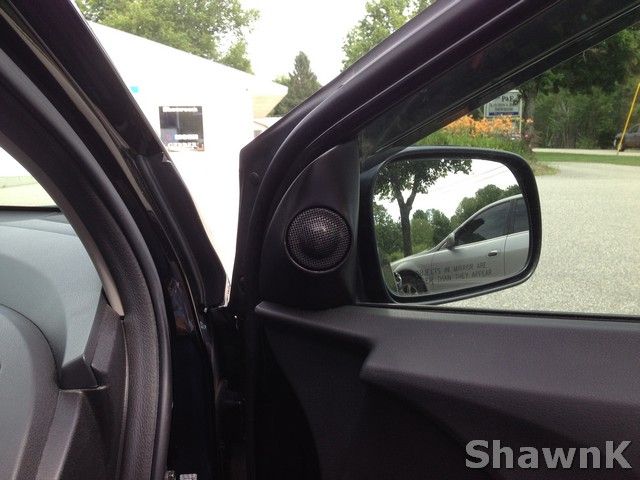

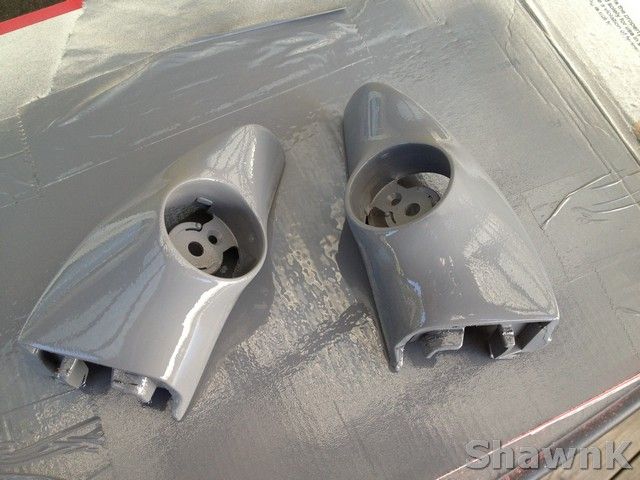

Tweeter pods for the upper door trim

See less See more

8

shawnk

Discussion Starter · #8 · Jul 24, 2013 (Edited)

So the a/d/s/ amp worked well, but she was in pretty rough cosmetic shape. I figured I'd give her a new finish (after removing the factory powder coating)

Here's what she looked like before:

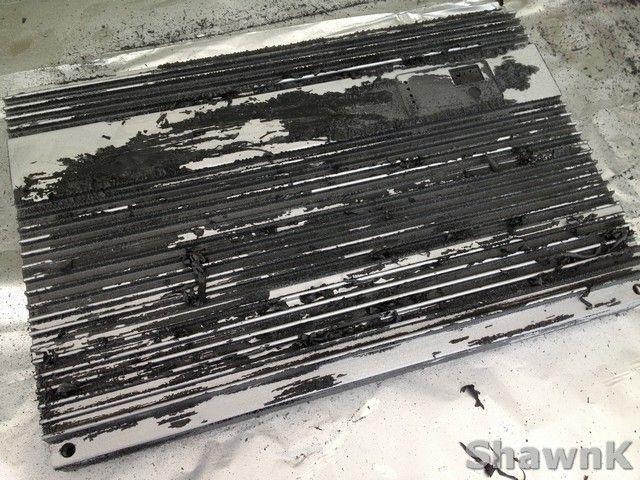

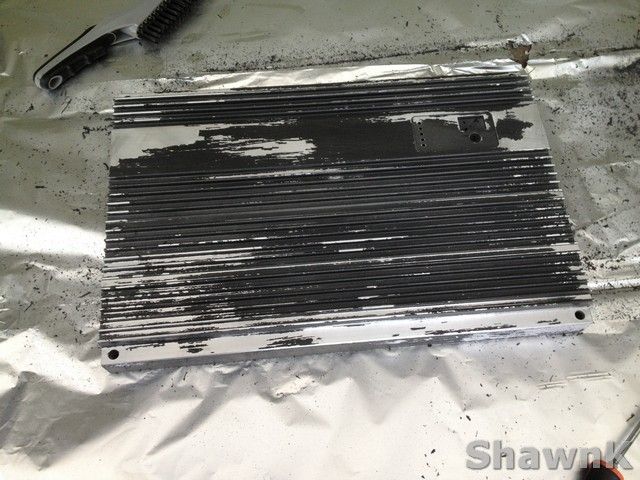

After 1 coat of "Air Craft Remover" and a quick sand with a wire brush:

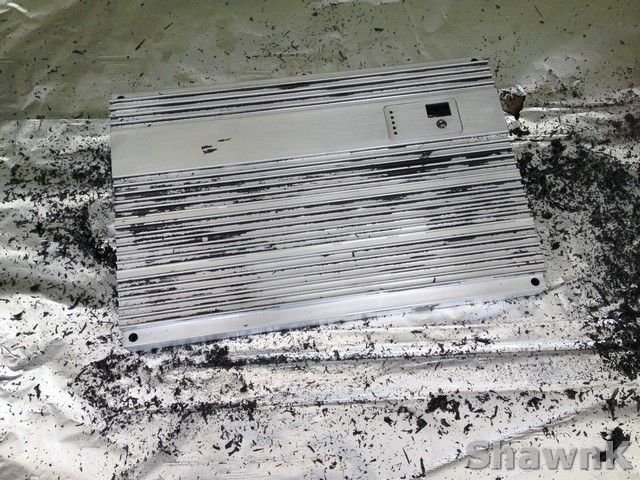

2nd coat

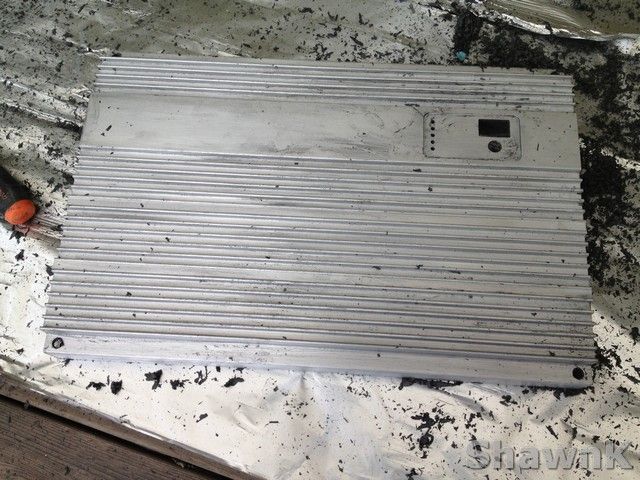

3rd coat

4th and final coat

and a quick once over with a scuff pad and some acetone... I've always loved raw aluminum finish

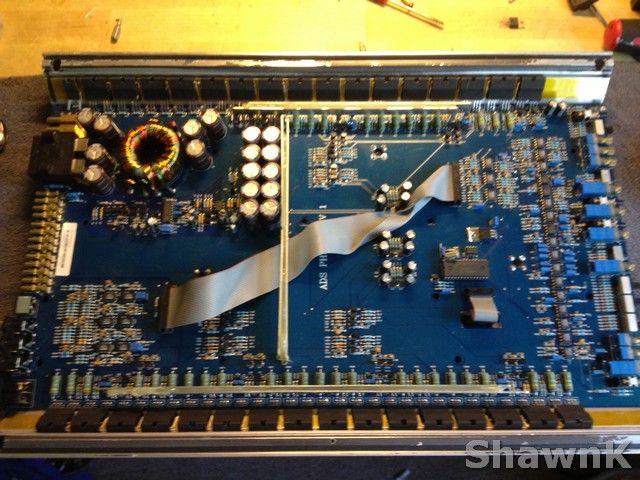

The internals didn't really need anything but I did apply new heatsink compound and Kapton tape

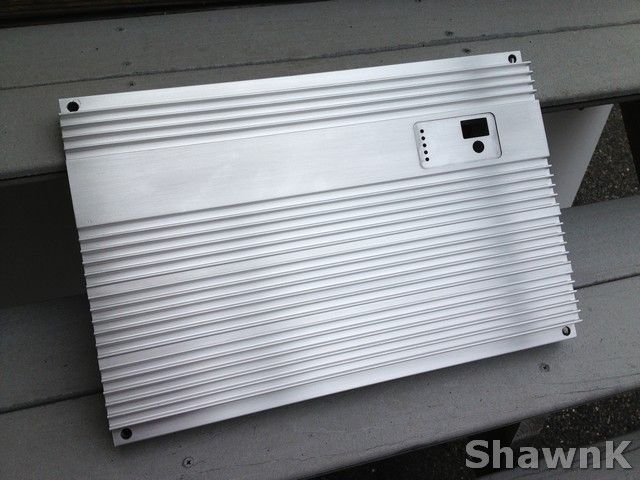

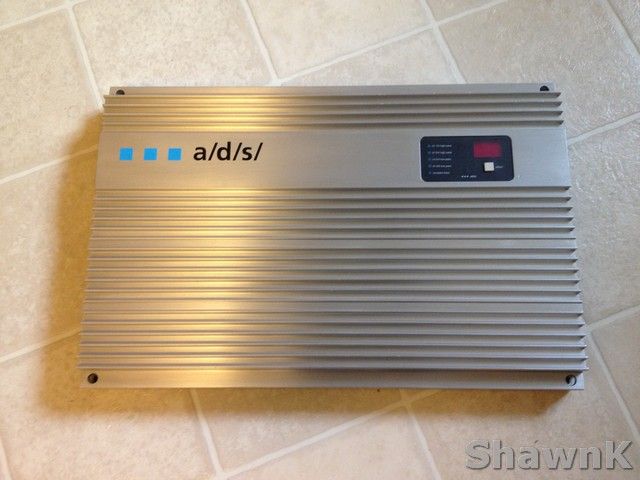

I then gave the amp a good clear coat over the raw aluminum and applied a fresh new a/d/s/ logo that a local print shop took care of me.

I personally like the look better than the original

See less See more

8

shawnk

Discussion Starter · #9 · Jul 24, 2013

Lots of fabrication pics coming later tonight! Stay tuned!
