Discussion Starter #342
Thanks DJ.


I want to clarify something on the coverage testing. When I did that testing, there was a very obvious reduction in the resonant frequency. However, it is still way into diminishing returns land. While I did hear a difference, it was minimal compared to the difference between no coverage, and 25% coverage. Lets say a panel is 4 square feet and your deadener of choice is $5 per square foot, and lets say the product and results scaled up perfectly.

For $5, you would get a 13db reduction in resonant frequency, an across the board reduction in resonance all the way up to at least 1000hz, and a significantly changed waterfall pattern, showing a very good reduction in ringing.

For another $15, you would get a further 8db reduction in resonant frequency, another slight reduction in across the board overall resonance, but no real improvement in the waterfall plots, meaning the reduction in ringing doesn't really change.

In other words, 400% the cost gets less than 160% the results.


As some people were suggesting that CLD does block some sound, I will be doing some testing of that as well. I have some luxury liner pro from my last build, and some raw mlv from SDS, so I'll test both so we can see what the difference is between materials in blocking sound. That said, from personal experience, I am a firm believer in using a barrier to block sound, rather than CLD, unless the microphone proves otherwise.

I have a lot of products on the way now, so final results are going to take a little longer. I'm going to try to do a better job in the meantime of explaining what we are seeing when I post the graphs, and the realistic use of the results.


·
Registered
Joined
·
47 Posts
Thanks DJ.


I want to clarify something on the coverage testing. When I did that testing, there was a very obvious reduction in the resonant frequency. However, it is still way into diminishing returns land. While I did hear a difference, it was minimal compared to the difference between no coverage, and 25% coverage. Lets say a panel is 4 square feet and your deadener of choice is $5 per square foot, and lets say the product and results scaled up perfectly.

For $5, you would get a 13db reduction in resonant frequency, an across the board reduction in resonance all the way up to at least 1000hz, and a significantly changed waterfall pattern, showing a very good reduction in ringing.

For another $15, you would get a further 8db reduction in resonant frequency, another slight reduction in across the board overall resonance, but no real improvement in the waterfall plots, meaning the reduction in ringing doesn't really change.

In other words, 400% the cost gets less than 160% the results.


As some people were suggesting that CLD does block some sound, I will be doing some testing of that as well. I have some luxury liner pro from my last build, and some raw mlv from SDS, so I'll test both so we can see what the difference is between materials in blocking sound. That said, from personal experience, I am a firm believer in using a barrier to block sound, rather than CLD, unless the microphone proves otherwise.

I have a lot of products on the way now, so final results are going to take a little longer. I'm going to try to do a better job in the meantime of explaining what we are seeing when I post the graphs, and the realistic use of the results.
I gotta say. Huge undertaking. Hard to believe as long as this stuff has been in the audio world, no independent test like this has really been done. It also shows how interested people are in some data on the subject. This thread appears to have become quite the hot topic. Strong work.


·
Registered
Joined
·
1,952 Posts
Thank you for doing this TSB.

Is Thumper sending some Rattle Trap...if not I have some I can send in. I will not use their products anymore out here in the AZ heat but I certainly would like to see it tested.


·
Registered
Joined
·
144 Posts
I am not sure if you tested for this but I am wondering if the difference between 25% and 50% would look similar to the difference between 25% and 100%. I would think that there should be a point where you reach maximum damping before you reach 100% coverage. Just wonder what that point is? I may be wrong though.

Thanks DJ.


I want to clarify something on the coverage testing. When I did that testing, there was a very obvious reduction in the resonant frequency. However, it is still way into diminishing returns land. While I did hear a difference, it was minimal compared to the difference between no coverage, and 25% coverage. Lets say a panel is 4 square feet and your deadener of choice is $5 per square foot, and lets say the product and results scaled up perfectly.

For $5, you would get a 13db reduction in resonant frequency, an across the board reduction in resonance all the way up to at least 1000hz, and a significantly changed waterfall pattern, showing a very good reduction in ringing.

For another $15, you would get a further 8db reduction in resonant frequency, another slight reduction in across the board overall resonance, but no real improvement in the waterfall plots, meaning the reduction in ringing doesn't really change.

In other words, 400% the cost gets less than 160% the results.


As some people were suggesting that CLD does block some sound, I will be doing some testing of that as well. I have some luxury liner pro from my last build, and some raw mlv from SDS, so I'll test both so we can see what the difference is between materials in blocking sound. That said, from personal experience, I am a firm believer in using a barrier to block sound, rather than CLD, unless the microphone proves otherwise.

I have a lot of products on the way now, so final results are going to take a little longer. I'm going to try to do a better job in the meantime of explaining what we are seeing when I post the graphs, and the realistic use of the results.


·
Registered
Joined
·
2,849 Posts
Discussion Starter #346
I do plan to test both 50% and 100% again, but that will probably be it. At this point, anything over 25% is going to show up as a diminished return in terms of vibration damping. The fact that quadrupling the coverage only gave a 60% increase at the resonant frequency, and much less everywhere else, means that 50% coverage will also lead to diminished results. I would actually put money on the most damping per dollar at somewhere under 25%. Maybe 20% or so.


There are absolutely cases where more than 25% may be needed, but for the vast majority of people, I feel its wasted money. If your considering adding more than that, ask yourself why. Is there a specific issue that your having? Are you going after every possible gain (and have the money to spare to do it). And I'm going to say this now. If any company ever tells you to start with 100% coverage, they are either lying through their teeth to make more money off of you, or making up for an under performing product.


BTW, on my last build, you can see that I didn't follow these rules myself. That said, I'm one who usually doesn't mind going after diminished returns. Just look at the kick panels, I could have stopped at just concrete, but I added 9000 steel bbs. Did it help? Maybe 0.0001%. That said, any future deadening I do, will start at 25%, and I will take measurements if I'm going to add more.


·
Registered
Joined
·
4,551 Posts
Thanks DJ.


I want to clarify something on the coverage testing. When I did that testing, there was a very obvious reduction in the resonant frequency. However, it is still way into diminishing returns land. While I did hear a difference, it was minimal compared to the difference between no coverage, and 25% coverage. Lets say a panel is 4 square feet and your deadener of choice is $5 per square foot, and lets say the product and results scaled up perfectly.

For $5, you would get a 13db reduction in resonant frequency, an across the board reduction in resonance all the way up to at least 1000hz, and a significantly changed waterfall pattern, showing a very good reduction in ringing.

For another $15, you would get a further 8db reduction in resonant frequency, another slight reduction in across the board overall resonance, but no real improvement in the waterfall plots, meaning the reduction in ringing doesn't really change.

In other words, 400% the cost gets less than 160% the results.


As some people were suggesting that CLD does block some sound, I will be doing some testing of that as well. I have some luxury liner pro from my last build, and some raw mlv from SDS, so I'll test both so we can see what the difference is between materials in blocking sound. That said, from personal experience, I am a firm believer in using a barrier to block sound, rather than CLD, unless the microphone proves otherwise.

I have a lot of products on the way now, so final results are going to take a little longer. I'm going to try to do a better job in the meantime of explaining what we are seeing when I post the graphs, and the realistic use of the results.
Great info. I will be interested in knowing the blocking sound diferences between the CLD, MLV and luxury liner pro. It is also a great idea to do that final report on the CLD. Thanks. Have a good time on your days off and I hope everything turns out great with your surgery also.


·
Registered
Joined
·
6 Posts
For the minimum testing (vibration, short term heat failure, long term heat) I'd need a 6"x8" piece.

Dustin, nope, no Fatmat yet. As of now, what I have left in my possession is GTMat 50mil, 110mil, and onyx, STP gold, silver, and vizomat, and Lightning Audio deadskin.

I have Memphis Mojo Mat on the way, and I believe some Audio Technix as well.


Ken, I'm going to call you in a few minutes, I've been meaning to do it, its just been crazy busy this week.
I have some BXT II I'd like to donate for testing. Please PM me an address so I can ship it.

One small request; can you test a sample (any sample) with double 95% coverage? I think it would be worthwhile to see what the actual returns on this are.


·
Registered
Joined
·
2,849 Posts
Discussion Starter #350 (Edited)
Got the fatmat and damplifier pro. Working on tests right now.

Praetorian, there are plans for the double coverage test, I just want to get the comparisons done first. Its a pain to removal the full coverage pieces.


·
Registered
Joined
·
2,849 Posts
Discussion Starter #352
I've been working on heat testing, since we've had to watch our nieces since thursday. It was really possible to get the house quite enough to test with them here. They're gone now, so I will vibration test Onyx, STP Gold, and Silver today. If there's time, I'll also start with the remainder of the asphalt products. I can't test any of the new products that have come in until I have the chance to cut them monday with the stamp.


·
Registered
Joined
·
4,551 Posts
Will we be able to know if laying the CLD vertically gives more benefit than being messy laying horizontally or from bottom to top as some have mentioned?

Or is it just a myth when doing the 25% coverage?
No need to do testing for this, it is just a question that I'm sure can be answered without doing a test. :) I asume just place it anywhere where we think it will have the most benefit using the knocking method, without worrying about looks for a picture display :laugh:


·
Registered
Joined
·
2,849 Posts
Discussion Starter #354
That's a very complicated and loaded question. The reason I marked the center of the metal for testing, is because different points of each panel will have different resonant properties. Generally speaking, the resonant mode at the center "should" be the strongest, but weird panel shapes can change this drastically. I chose the center, because it was the easiest to position everything, and that's usually where most people start. I would expect rectangular pieces to have the same effect whether laid vertically or horizontally, as long as the center of the rectangle is in the center of a square, flat piece of sheet metal that's terminated evenly on each side. Anything else, and it would have to be measured to know.



One of the things I plan on doing next time I test, is testing a rectangular piece. I plan on testing different places on it. This is a long way off, but its something I think we could all learn from. I also want to test different thicknesses, and at all different temps.

I do plan to test a single square 25% coverage piece, vs 3 smaller pieces that add up to 25%, as I know that has been mentioned. But, it will be far from a definitive test, as there are thousands of combinations that could add up to 25%.


In the end, I don't think I'll do very specific ranks, instead focusing on tiers. Some of the products perform so close, that small variations could change the outcome. Then, some products or groups of products have set themselves apart from others very clearly. And obviously the heat testing will play a role. What good is a great performing product, if it can't stand up to actual use in a car.


·
Registered
Joined
·
4,551 Posts
Thanks, I was just wondering since I heard some members say to lay it vertically but my guess was it was just for looks.

What about the side placement effects, or what side of the metal benefits the most? In other words, if we could deaden the inside of the inner door wall, would that give better results than the side facing door panel? Not sure if the method used for testing can gives us an audible difference or anyone else can tell just based on experience. Thanks!


·
Registered
Joined
·
118 Posts
I was just wondering if you are still testing, I have some audio technix 60 mil I would be willing to donate if you are interested.


·
Registered
Joined
·
2,849 Posts
Discussion Starter #357
Thanks, I was just wondering since I heard some members say to lay it vertically but my guess was it was just for looks.

What about the side placement effects, or what side of the metal benefits the most? In other words, if we could deaden the inside of the inner door wall, would that give better results than the side facing door panel? Not sure if the method used for testing can gives us an audible difference or anyone else can tell just based on experience. Thanks!
The current test box wouldn't be able to test is, since a flat panel would likely test almost identical no matter which side you put it on. Complex panel shapes might test differently, but are also inherently much more difficult to test. I do absolutely believe that treating both sides of the metal, like in the case of the door panel, would turn up better results than doubling layers would. That's actually a good idea to test, I'll get that worked in after the product comparison is done.


I apologize for the lack of updates, I had to replace on of the hurricane nuts and bolts sat and sunday. I had planned to test last night, but the whole county lost power last night. Kind of sucks, it was perfect as far as background noise level, but couldn't test without power. I verified earlier that the new nut/bolt hasn't changed the results I'm getting by doing multiple metal tests, which all ranged in between the current high and low tests of the bare metal. I'll be testing at least two products later today when the house quiets down.


·
Registered
Joined
·
2,849 Posts
Discussion Starter #360
STP-Atlantic Gold

Actual Measurements

Total Thickness - 85mil

Constraining Layer Thickness - 4mil

0.85 lbs per square foot

Notes - Very clean removal, just like STP-Bomb in that respect. Overall well performing.

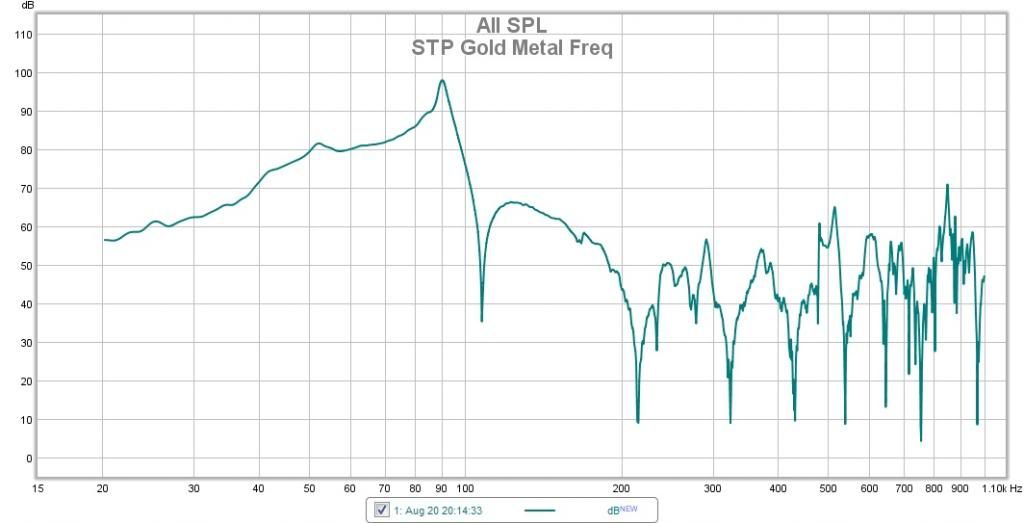

Bare Metal Frequency Response

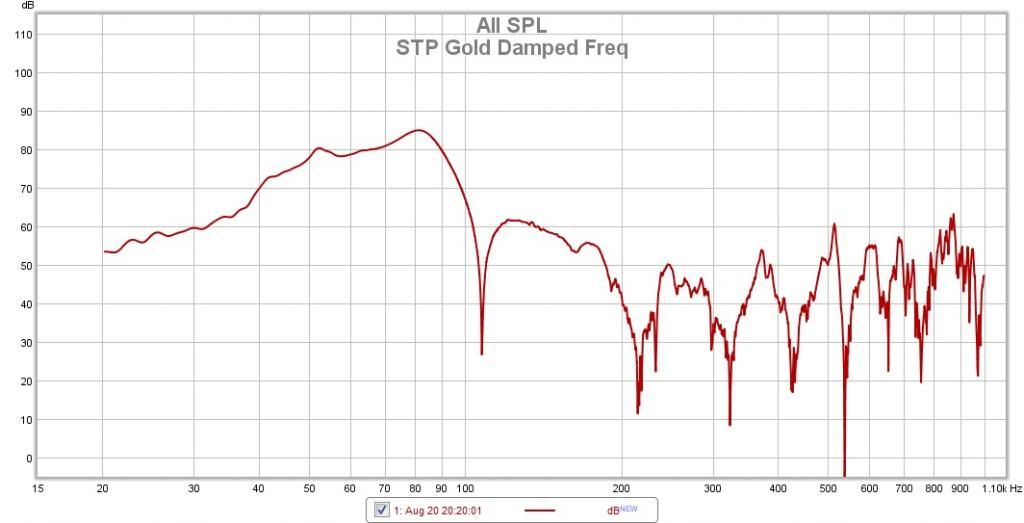

Damped Metal Frequency Response

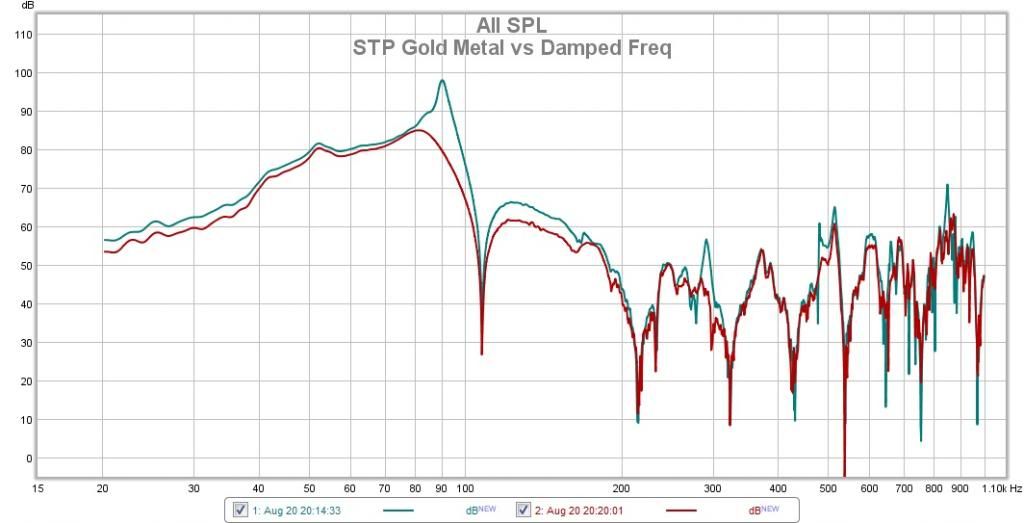

Overlay of Undamped Metal vs Damped Metal Frequency Response

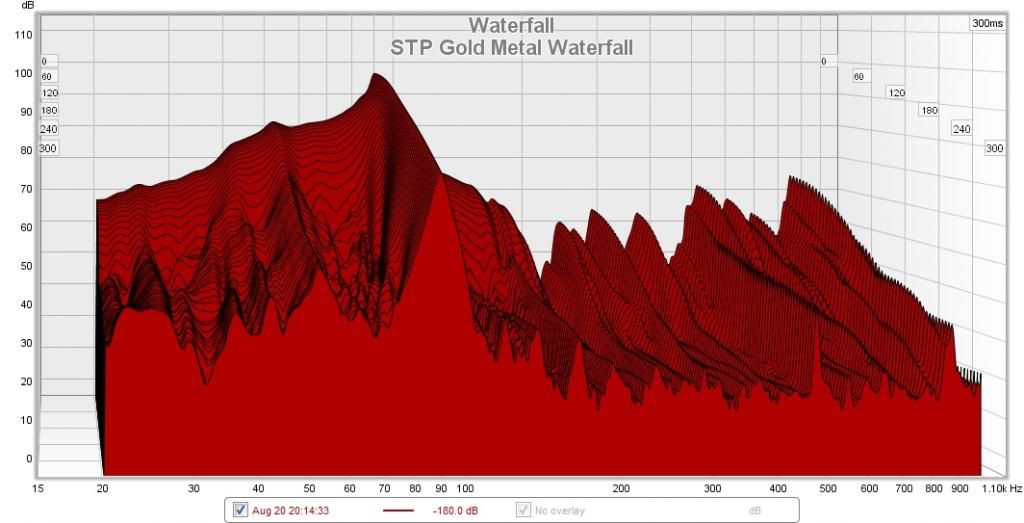

Bare Metal Waterfall
