Discussion Starter #1
1. Product: Title



2. Specs:
Re = 3.6232 ohms
Fs = 48.3788 Hz
Zmax = 28.1842 ohms
Qes = 0.6934
Qms = 4.7003
Qts = 0.6042
Le = 0.3388 mH (at 1 kHz)
Diam = 131.8260 mm ( 5.1900 in )
Sd =13648.7233 mm^2( 21.1556 in^2)
Vas = 14.9312 L ( 0.5273 ft^3)
BL = 5.5198 N/A
Mms = 19.1816 g
Cms = 564.2158 uM/N
Kms = 1772.3716 N/M
Rms = 1.2405 R mechanical
Efficiency = 0.2291 %
Sensitivity= 85.6185 dB @1W/1m



3. Description/Condition: BN but the box was destroyed in shipping, their foam proectors saved the day as they were completely unscathed.These are the nicest Midbasses I have owned, overbuilt and hyper efficient and very loud with extral low distortion. Rated for 50rms each, they should handle that with ease down to 50Hz. Compound linear curve cone-body as well (while Im thinking of it lol. they are capable of 30Hz extension if boxed.



4. Price: : $130 for the pair plus shipping

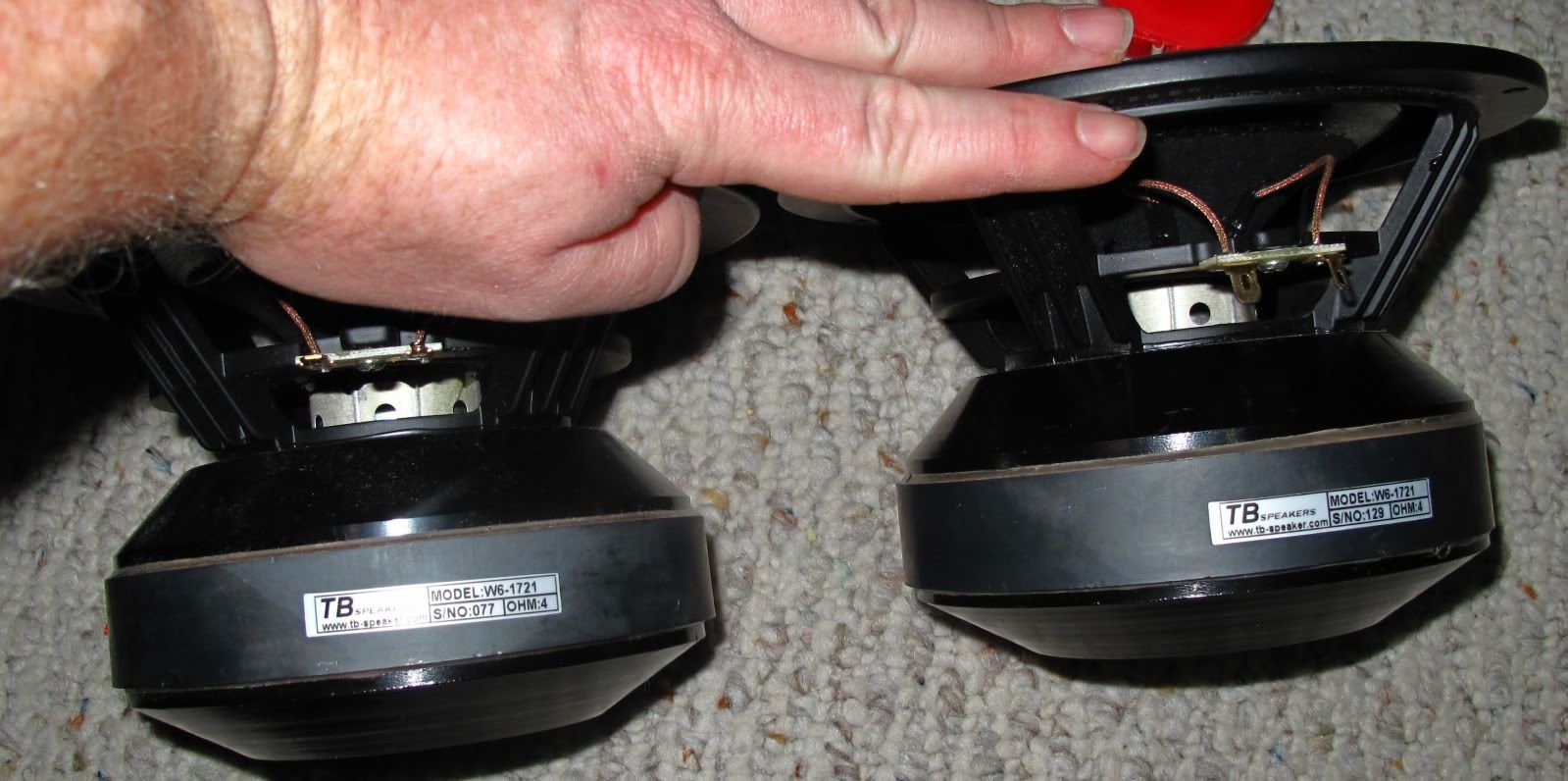

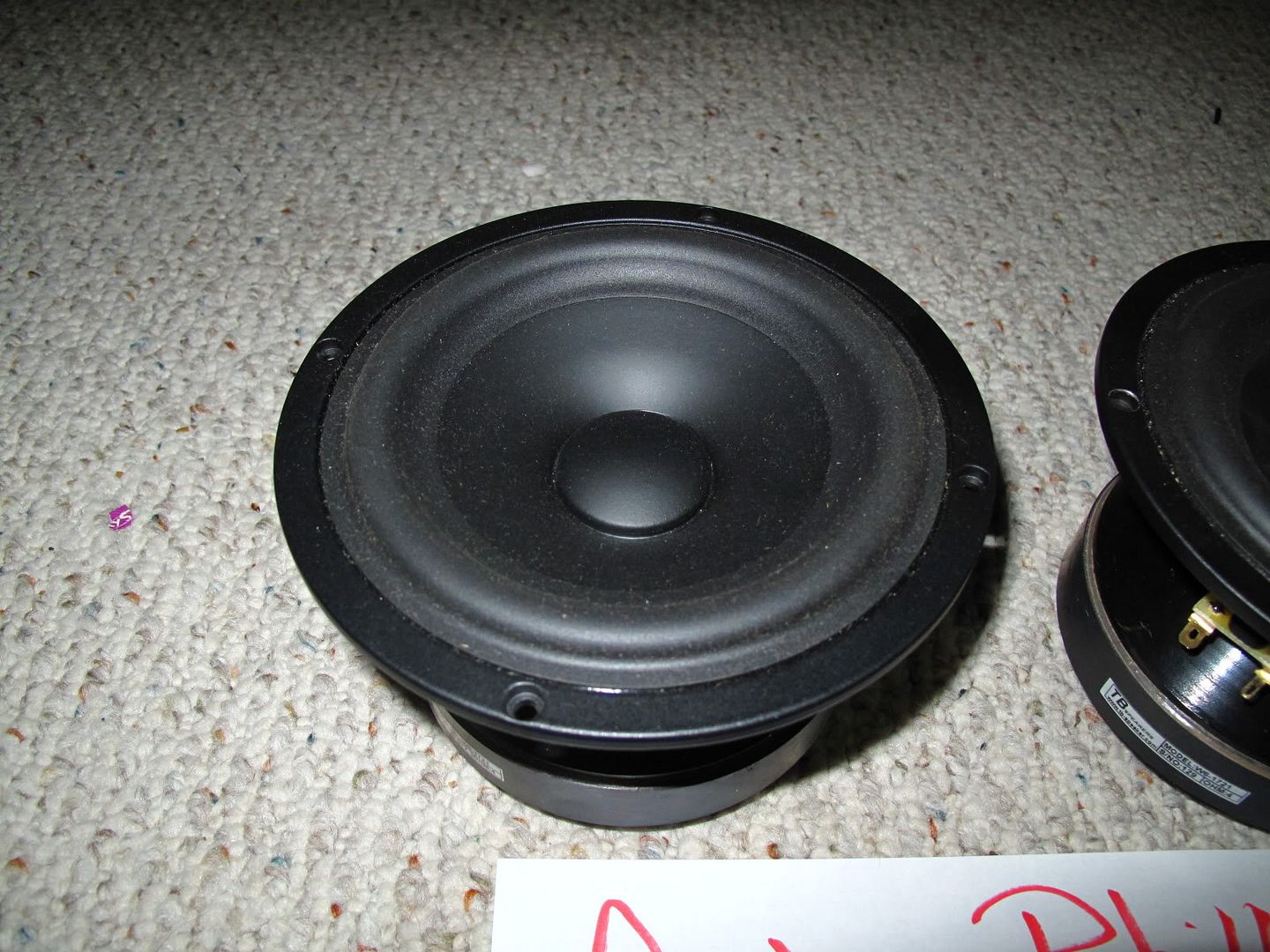

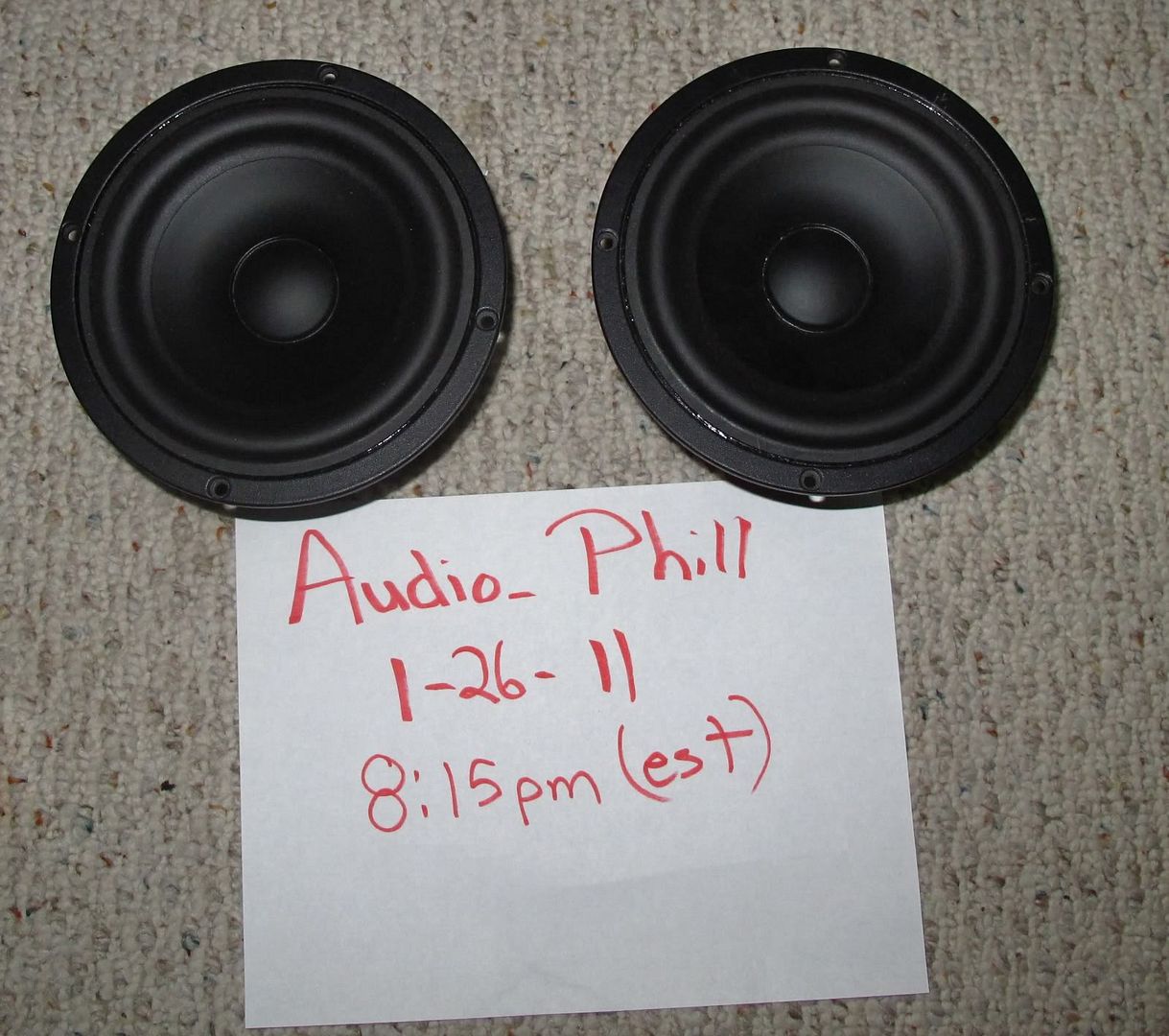

5. Pictures:





·
Registered
Joined
·
22 Posts
I have these but 5,5 and they sound pretty good! Smooth and go very low... I'm using them boxed...


·
Registered
Joined
·
37 Posts
Discussion Starter #3
Yep, these things are insane, I even pondered them for sub duty, with their efficiency and TSP's they'd make short work of the top shelf CDT subs in their size class.
